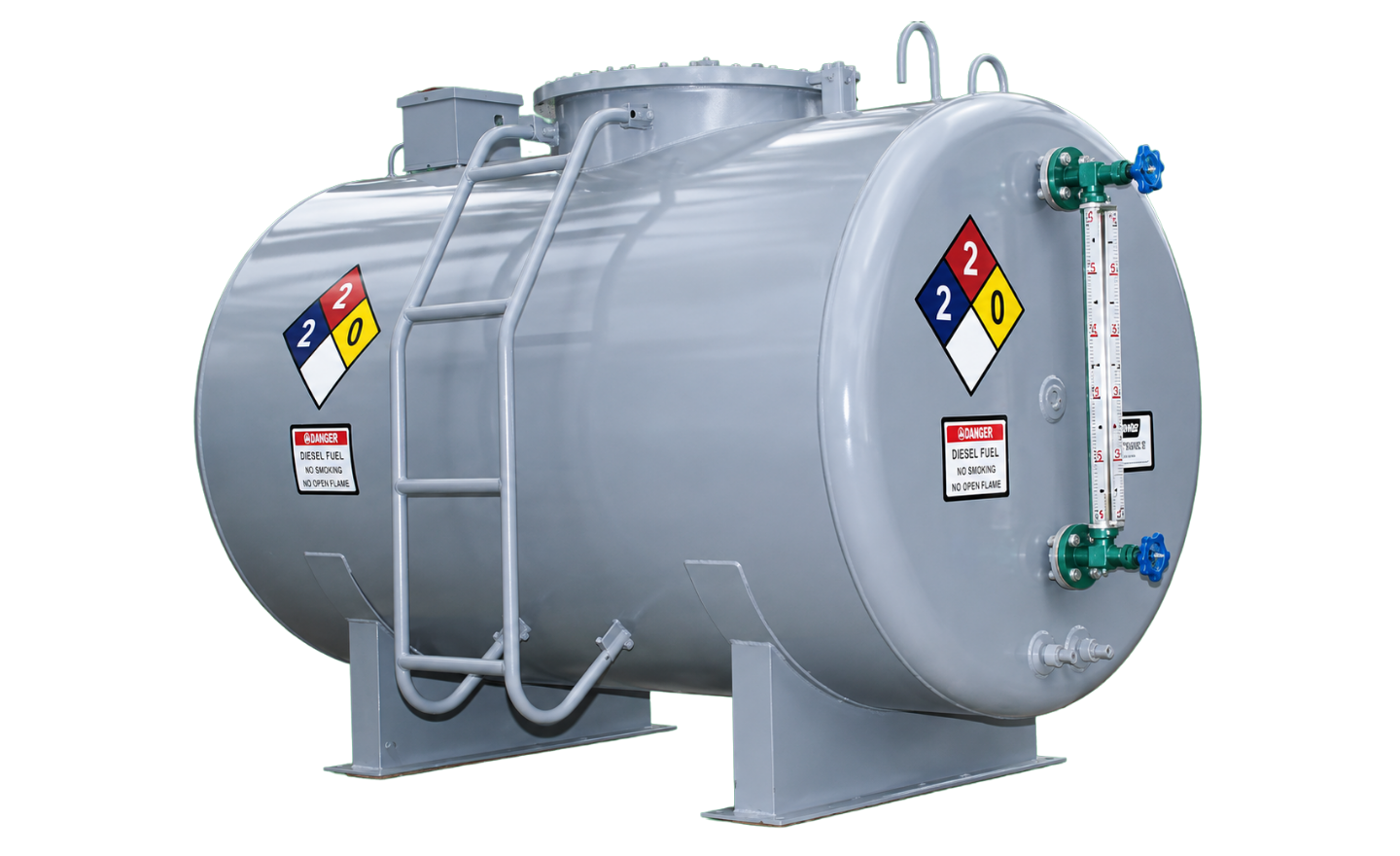

Diesel Fuel Tank

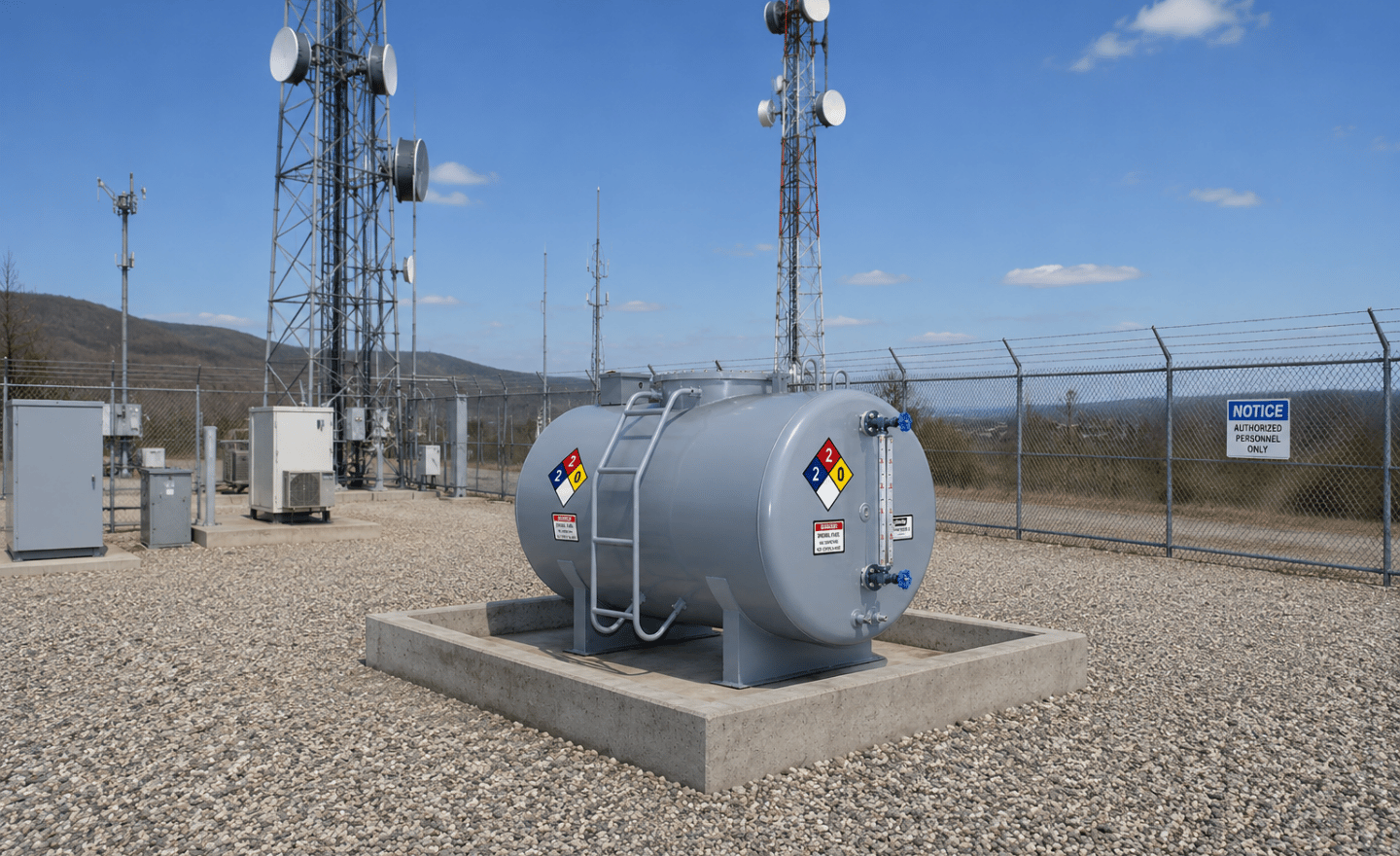

Single Wall Horizontal Aboveground Fuel Tank for diesel fuel. For bulk supply of diesel fuel for generators. Built-in impact protected glass gauge for convenient and quick inspection of fuel level. Manufactured using sheet of carbon steel generally recommended for diesel fuel tanks. Thick enough to prevent tank implosion and bloating during ambient temperature changes. Shell thickness and joints conform to UL142 Standards for Steel Aboveground Tanks for Flammable and Combustible Liquids. Fitted with access ladder for comfortably refilling or conducting visual inspection of the interior. Access ladder can be fitted to either left or right side of the tank. Top manhole for access during interior tank cleaning. NFPA compliant hazard diamond decal. 1,000 liter capacity.
Diesel Fuel Tank
| Capacity (L) | 1,000 |
| Type | Single Wall |
| Dimensions (mm) | (L) 1620, (W) 1950, (H) 1260, (Dia.) 1000 |
| Dry Weight (Kg) | 250 |
| Operating Pressure: | Atmospheric |
| Pressure Tested (PSIG) | 5.0 |
| Tank Shell Material | Mild Carbon Steel |
| Tank Shell Thickness (mm) | 3.0 |
| Tank Head Thickness (mm) | 5.0 |
| Construction | Butt Weld |
| Interior Finish | None |
| Exterior Finish | Epoxy Primer Gray |
(Specifications are subject to change without prior notice.)
